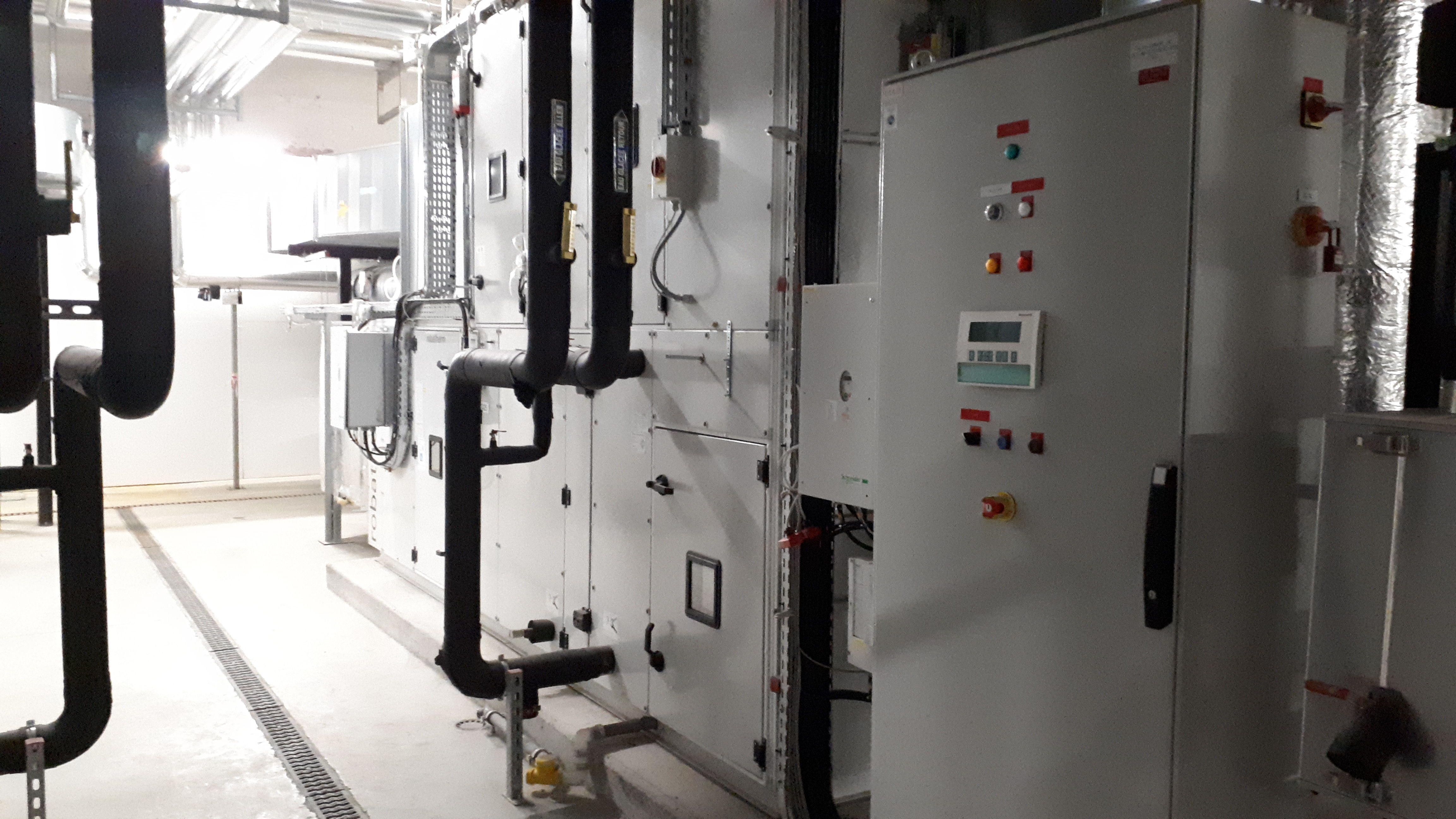

Air Handling Unit CTA 25-Robatherm-019.SF
Type: RM 12/18 + RM 12/15
Brand: Robatherm
YOM: 2016
Lot Number: 019.SF
CTA 25 : Plant 21.000 m3/H
Technical Details
Supply Air Fan
Air Flow
16450m3 / h.
External Pressure
950 Pa.
Total Pressure
1566 Pa.
Operating Speed
1549 1 / min.
Number Frequency
53 Hz
Max Speed
1790 1 / MIN.
Max. Frequency
61 HZ.
Motor Power
1x15 kW.
Motor Speed
1465 1 / min.
Voltage
400 V.
Network Freqency
50 Hz.
Absorbed Current
28,7 A.
Exhaust Air Fan
Air Flow
13800 M3/H
External Pressure
800 pa
Total Pressure
1181 pa
Operating Speed
1934 1/min
Number Frequency
66 Hz
Max Speed
2290 1/min
Max. Frequency
78 Hz
Motor Power
1x11 kW
Motor Speed
1465 1 /min
Voltage
400 V
Netowrk Frequency
21,2 A
Filter
Air Flow
13800 mᶟ/h.
Dirty Filter Pressure Drop
200 Pa.
Class
F7
PDC Clean Filter
47 Pa.
Number Of Filters
4x1/1 2x1/2.
Hot Battery
Heat Transfer Fluid
EAU.
Hot Capacity
16,7 kw.
Air Flow
16450 mᶟ/h.
Fluid Temp
60 | 40°C
